Name: LCD Display Controller RS485 Pelco PTZ IP Camera Controller Keyboard support POE
Brand: Yisen
Price: 1 USD

Brand Name : Yisen

Model Number : FT-K01

Certification : CE ROHS

Place of Origin : Guangdong China

MOQ : 1pcs

Payment Terms : T/T, Western Union, MoneyGram paypol

Supply Ability : 2000pcs

Delivery Time : 2-6 work days

Packaging Details : standard carton box with thick pearl cotton

Contact Now

Parameter

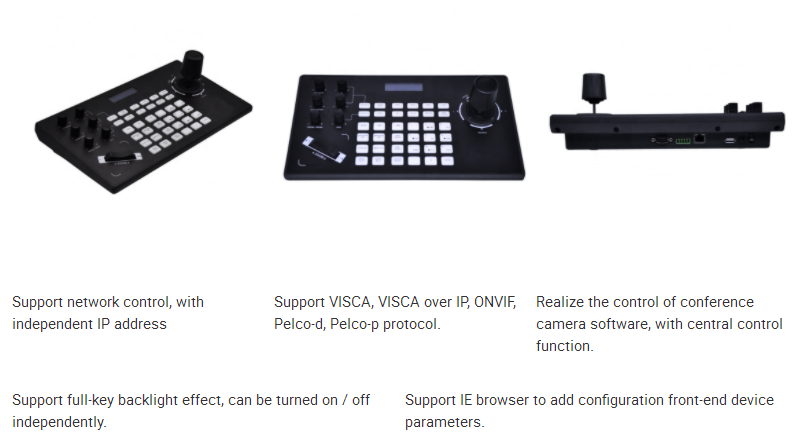

Protocol	VISCA, VISCA over IP, Onvif, Pelco-D, Pelco-P
Max number of connections	Onvif / VISCA over IP: 110 RS485: 255 (Pelco-D/P) RS422: 7X2(VISCA) RS232: 7(VISCA)

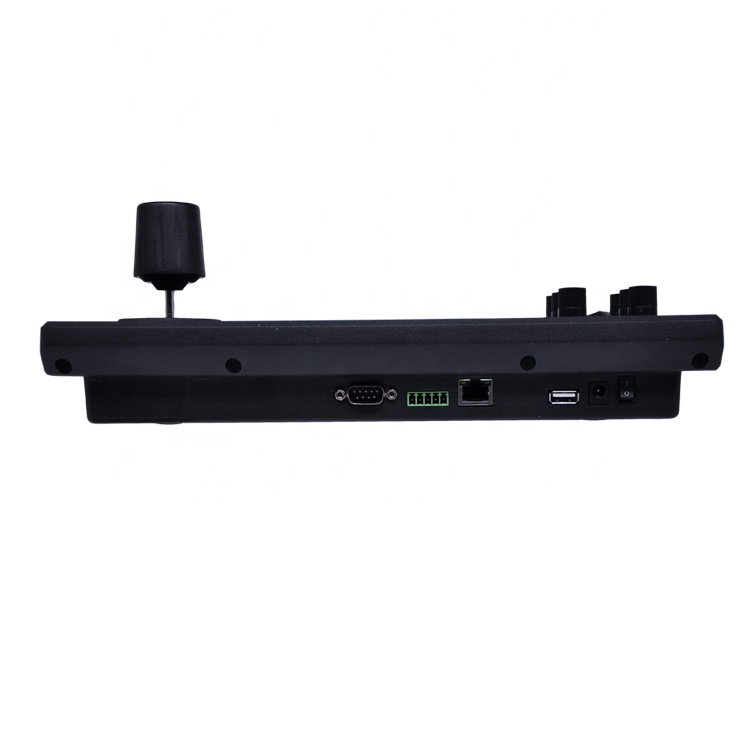

Interfaces	1 x RS232, to control camera, 30 metersdistance 1 x RS485 / RS422, to control camera, 1200 metersdistance 1 x RJ45, PoE supported 1 x USB2.0 1 x DC12V
Display mode	LCD
Input voltage	Power supply:DC 12V / PoE (802.3af)
Input current	0.5A (max)
Power consumption	0.6W (max)
Working Temperature	0℃~55℃
Storage Temperature	-10℃~60℃
Dimension	320177115.5(mm)
Net weight	1.74kgs

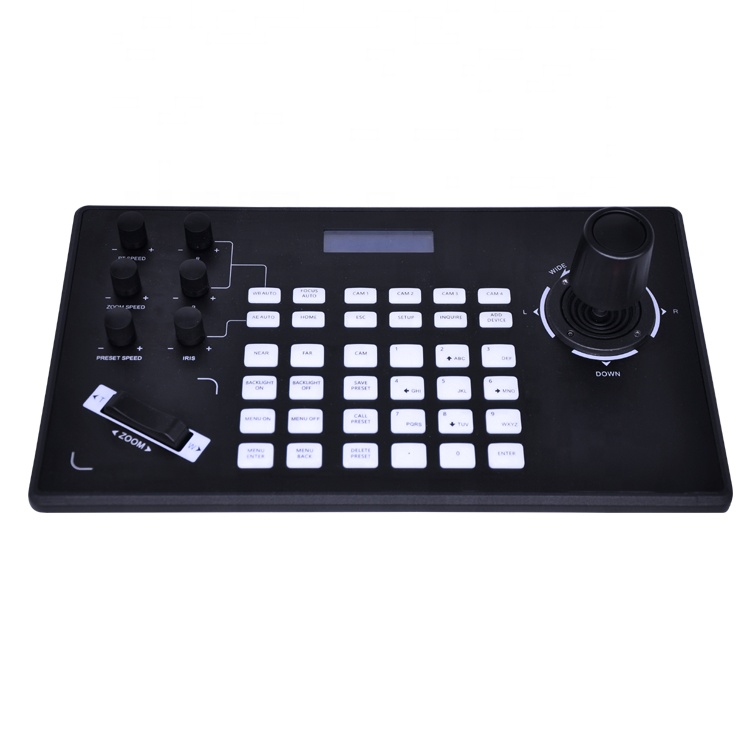

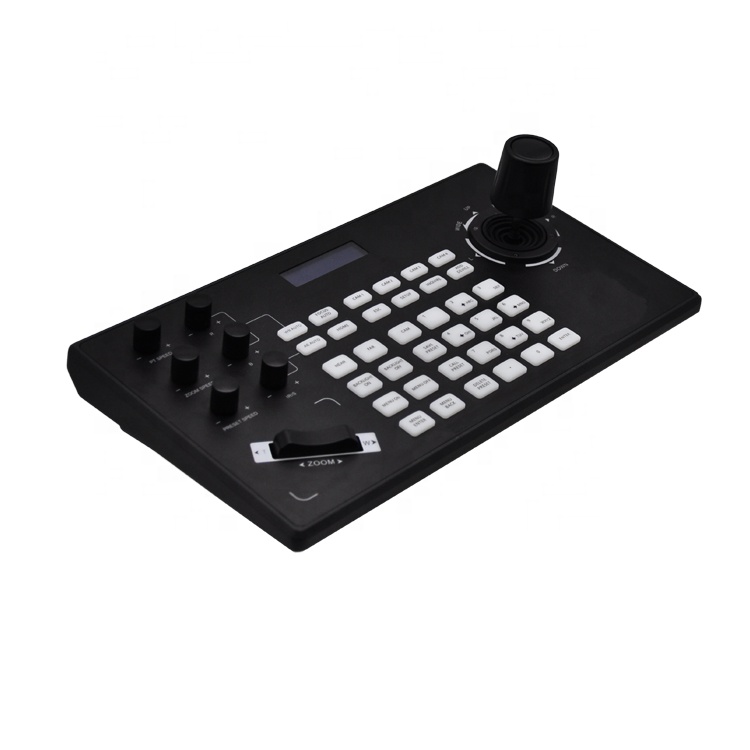

LCD Display Controller RS485 Pelco PTZ IP Camera Controller Keyboard support POE

LCD Display Controller RS485 Pelco PTZ IP Camera Controller Keyboard support POE Images
